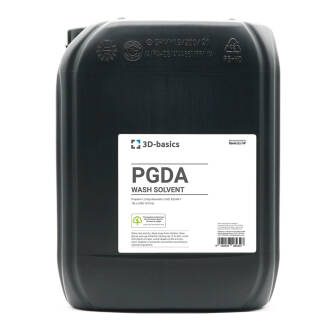

3D-basics PGDA Wash Solvent 10.000 ml

SKU: ACAP-1021-002

Specially developed for Formlabs’ PU Rigid 650 and PU Rigid 650 polyurethane resins, this non-flammable, low-odor PGDA solvent is ideal for cleaning and dissolving uncured resin from SLA 3D prints. It is safer for indoor use and outperforms isopropanol in both efficiency and longevity.

Contents (Please select): 10 L 10 L
20 L 20 L
5 L 5 L

219,00 €

21,90 € per 1 l

incl. 19% VAT ,

Not in stock, but available for pre-order

Delivery time: ca. 3 weeks*
(DE - int. shipments may differ)

3D-basics PGDA Wash Solvent 10.000 ml

219,00 €

21,90 € per 1 l

incl. 19% VAT ,

Fast shipping

13+ years experience

Secure payment

PayPal Plus Visa Apple Google Klarna Visa Mastercard Billie Vorkasse

Description
Contact

PGDA Wash Solvent

PGDA Wash Solvent (propane-1,2-diyldiacetate) is a non-flammable, low-odor solvent used to clean and dissolve uncured resin from stereolithography (SLA) 3D-printed parts. PGDA has a lower evaporation rate than isopropanol (IPA) and can clean approximately three to four times as many parts as isopropanol before it needs to be replaced.

Formulated for Formlabs Polyurethane Resins PU Rigid 650 & PU Rigid 650

Formlabs polyurethane materials produce flexible and tough polyurethane parts that withstand extreme impacts and retain their shape over the long term. Due to their chemical composition, they can only be washed with PGDA Wash Solvent. TPM Wash solvent does not work, and isopropanol can damage the parts.

Recommended and tested quality from Formlabs

3D-Basics is Formlabs’ global solvent distribution partner. Purchasing PGDA Wash Solvent from 3D-Basics guarantees maximum compatibility with Formlabs resins and machines. PGDA Wash Solvent with a purity of ≥ 99% is highly effective at removing uncured resin from polyurethane 3D-printed models.

Safe for use indoors, in offices, and in laboratories

PGDA Wash Solvent is not classified under EU Regulation 1272/2008 (CLP). Therefore, there are no special requirements for the storage or handling of PGDA Wash Solvent. This makes it ideal for use in office spaces, laboratories, and indoor environments.

The cost-effective way to post-process 3D prints made from polyurethane resin

PGDA Wash Solvent can dissolve three to four times the amount of resin that isopropanol is capable of dissolving. When used with the recommended pre-wash cycles, the service life of PGDA can be further extended, making it cost-effective.

Using PGDA Wash Solvent

Always wear nitrile gloves when handling PGDA.
PGDA Wash Solvent is intended for use only with Formlabs PU Rigid 650 & PU Rigid 650.

For a detailed workflow on Formlabs Wash, visit support.Formlabs.com (external).
To remove uncured resin from SLA or DLP-printed parts, fill your cleaning tank with the amount specified by the manufacturer. To minimize waste, it is recommended to pre-clean parts before placing them in the cleaning tank to extend the life of your fresh PGDA. This can be done in a separate container using either "dirty" PGDA from previous cleaning cycles. Place the finished print into the cleaning tank and clean the parts for at least 2 minutes or according to the material manufacturer’s guidelines. After the cleaning cycle, blow off the PGDA-coated part with compressed air and wash it with n-butyl acetate to accelerate evaporation. Allow the model to dry and check if the surface is sticky. If necessary, repeat the process until the surface is no longer sticky. If it is still sticky, the PGDA should be replaced.

Optimal Cleaning Steps

Pre-clean in a small container to remove uncured resin and minimize the amount of saturated cleaning solvent
First cleaning stage: Run a wash cycle in Form Wash using "dirty/used" PGDA wash solvent
Second cleaning stage: Run the wash cycle in Form Wash with fresh PGDA wash solvent. Due to the previous wash cycles, this PGDA can be used for an extended period. If performance declines, repeat the first step.
4. Final stage: Remove PGDA wash solvent with compressed air and rinse in n-butyl acetate to accelerate the evaporation of the PGDA wash solvent.

Advantages of PGDA Wash Solvent

The only wash solvent for Formlabs PU Rigid 650 & PU Rigid 650 resin.
PGDA evaporates much more slowly, making it easy to store without losing much of the product.
Virtually odorless except for a slight chemical smell, PGDA makes working with it easier for people who come into contact with it.
Not classified as a hazardous material and with no special requirements for storage, ventilation, or fire hazard, PGDA Wash Solvent is the perfect solvent for indoor spaces, offices, and laboratories.

Compatibility

Compatible

Formlabs Wash
Formlabs Wash L
Rigid PU

Not compatible

Biocompatible resin - Use of isopropanol

How to store PGDA Wash Solvent

There are no special requirements for storing PGDA. In general, store in a cool, dry place away from sunlight.

Disposal of PGDA Wash Solvent

PGDA Wash Solvent, its container, and the rinse water must be disposed of at a suitable waste treatment facility. Please check local regulations.
