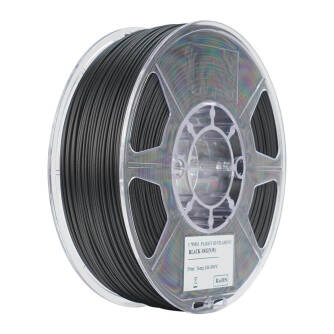

eSun PA12+CF Filament

SKU: PMES-1066

PA12 filament with 15% carbon fiber for high strength.
Rigid, tough, and impact-resistant as a lightweight alternative to metal.
Low moisture absorption and high dimensional stability.
Heat-resistant up to 120 °C continuously, up to 160 °C for short periods.
Ideal for robotics, UAVs, gears, and industrial components.

Color (Please select): Black

€ 119,99

€ 119,99 per 1 kg

incl. 19% VAT ,

Not in stock, but available for pre-order

This item has variations. Please select the requested variation.

eSun PA12+CF Filament

€ 119,99

€ 119,99 per 1 kg

incl. 19% VAT ,

This item has variations. Please select the requested variation.

Fast shipping

13+ years experience

Secure payment

PayPal Plus Visa Apple Google Klarna Visa Mastercard Billie Vorkasse

eSun PA12+CF Filament

The eSun PA12+CF Filament is a high-performance PA12-based filament developed by eSUN with a 15% carbon fiber content. The carbon fiber reinforcement significantly increases strength, stiffness, and toughness, making the material a high-performance alternative for many metal applications. At the same time, PA12+CF offers low moisture absorption, high dimensional stability, and a matte, high-quality surface finish.

15% carbon fiber for high strength and stiffness

Thanks to the addition of 15% carbon fiber, eSun PA12+CF achieves significantly improved mechanical performance compared to unreinforced PA12. Printed parts are rigid, durable, impact-resistant, and resilient to mechanical stress. The filament is particularly suitable for functional 3D-printed parts, technical fixtures, robotics components, UAV parts, and applications where low weight must be combined with high stability.

Low moisture absorption and high dimensional stability

PA12+CF has low water absorption, which means printed parts are less affected by humidity and temperature fluctuations. The high dimensional stability supports precise, reproducible print results and reduces dimensional deviations during use. This makes the material ideal for technical components where fit accuracy, dimensional stability, and reliable function are critical.

Heat-resistant, wear-resistant, and self-lubricating

eSun PA12+CF is designed for thermally demanding applications and can be used continuously at temperatures up to 120 °C. The material can withstand temperatures up to 160 °C for short periods. Its self-lubricating and abrasion-resistant properties make PA12+CF particularly suitable for gears, guides, moving functional parts, and mechanical components subject to friction loads.

Improved printability without pre-drying

Compared to standard PA12-CF, eSun PA12+CF offers optimized print performance and supports higher print speeds. After vacuum opening, the material can be processed immediately without the need for prior drying. The low shrinkage reduces warping and cracking, while the matte, fine surface enables professional print results for technical and industrial components.

      Advantages at a glance

15% carbon fiber: Significantly increased strength, stiffness, and toughness.

Metal alternative: Suitable for many applications requiring stable and lightweight components.

Low moisture absorption: Less susceptible to humidity and temperature fluctuations.

Heat-resistant: Can be used continuously up to 120 °C and briefly up to 160 °C.

Self-lubricating & abrasion-resistant: Ideal for gears, guides, and moving components.

Matte surface: A refined, technical component look without the glossy plastic effect.

Excellent printability: Improved print performance, higher print speeds, and ready for use immediately after opening.

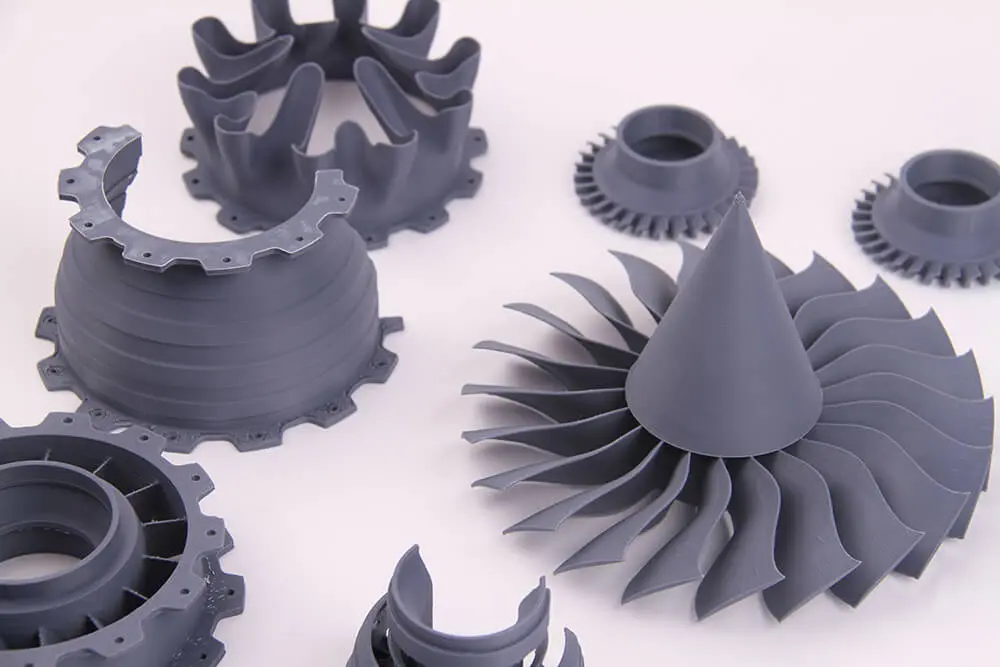

Technisches 3D-Druck-Bauteil aus eSun PA12+CF Filament mit Carbonfaserverstärkung

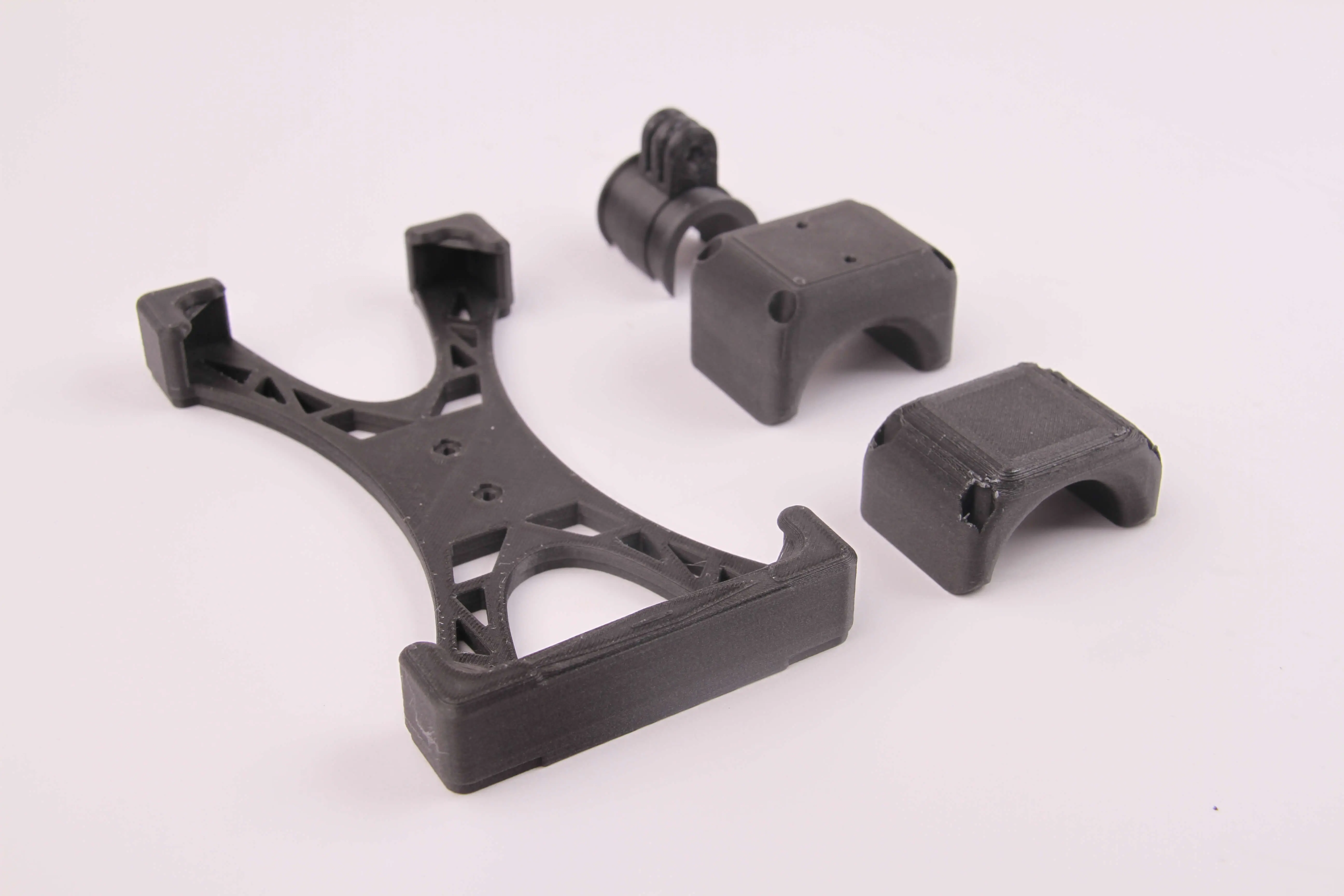

Carbonfaserverstärktes PA12-Filament für robuste industrielle 3D-Druck-Anwendungen

For high-load carbon fiber components in 3D printing

eSun PA12+CF is a technical 3D printing filament for applications requiring high strength, stiffness, heat resistance, and dimensional stability. The material is suitable for components subjected to continuous mechanical, thermal, or chemical stress. Thanks to the combination of a PA12 base, carbon fiber reinforcement, low moisture absorption, and an abrasion-resistant surface, PA12+CF is a robust solution for professional and industrial 3D printing projects.

Typical Applications

The filament is suitable for mechanical engineering, the chemical industry, electrical and electronic applications, robotics, UAVs, the automotive industry, the textile industry, aerospace, gears, brackets, fixtures, technical enclosures, high-load functional parts, and lightweight structural components. Wherever 3D-printed parts must be stable, rigid, wear-resistant, and temperature-resistant, eSun PA12+CF offers a high-performance material base.

Item information	Value


            Technical Specifications

            Feature
            Value

            Density (g/cm³)
            1.07

            Melt flow index
            2.8 (230 °C/10 kg)

            Heat deflection temperature (°C, 0.45 MPa)
            131.9

            Tensile strength (MPa) (XY)
            38.65

            Tensile strength (MPa) (Z)
            26.51

            Elongation at break (%) (XY)
            17.52

            Elongation at break (%) (Z)
            9.75

            Flexural strength (MPa) (XY)
            58

            Flexural strength (MPa) (Z)
            37

            Modulus of elasticity (MPa) (XY)
            2288.77

            Modulus of elasticity in bending (MPa) (Z)
            1110.87

            IZOD impact strength (kJ/m²) (XY)
            10.37

            IZOD impact strength (kJ/m²) (Z)
            3.79

            Extruder temperature (°C)
            250–290 °C

            Bed temperature (°C)
            60–100 °C

            Fan speed (%)
            0%

            Print speed (mm/s)
            <200 mm/s

            Heated bed
            Required

            Printing recommendation
            Dry for more than 12 hours at 70 °C, use a hardened steel nozzle, and print in a closed print chamber

            Drying required
            Yes
