| Eigenschaft |
POP 4 |
| Scanning Type |
Handheld and Desktop |
| Technology |
Blue Multi-line Laser, Near-Infrared Full-field Structured Light and VCSEL Structured Light |
| Scannable Object Size |
Small to Medium |
| Single-frame Accuracy, up to |
Line Laser Accuracy: 0.03 mm
Full-field Structured Light Accuracy: 0.08 mm
VCSEL Structured Light Accuracy: 0.10 mm @ 300–500 mm, 0.20 mm @ 500–800 mm
|
| Volumetric Accuracy |
0.03 mm + 0.05 mm × L (m), L is the length of the object.
Note: Using Multi-line Laser Mode
|
| Fused Point Distance, up to |
0.05 mm |

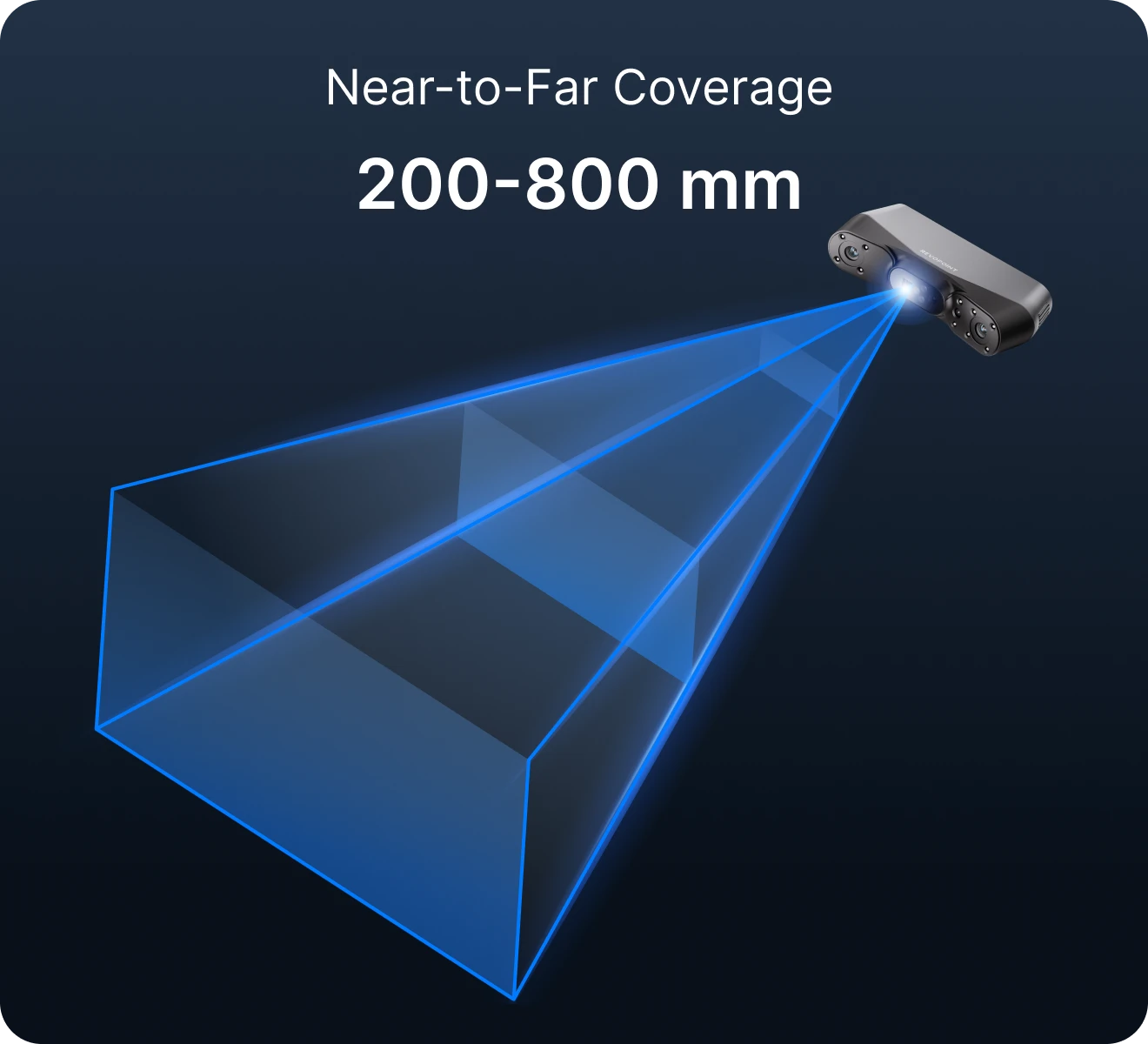

| Working Distance |
200–400 mm (Multi-line Laser Mode)

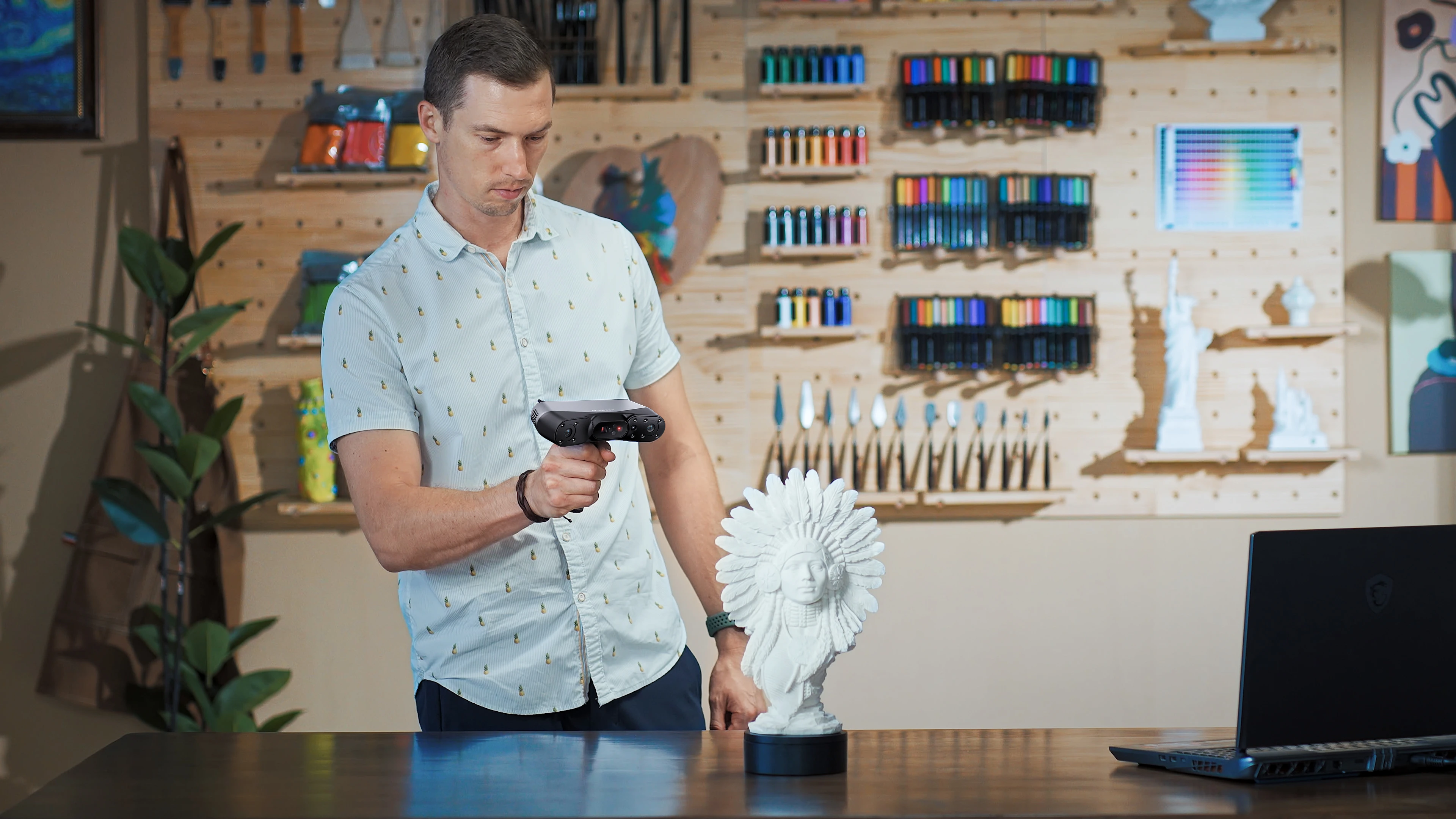

250–500 mm (Full-field HD Mode and Hybrid HD)
300–800 mm (VCSEL Mode)
|
| Single Capture Area at Nearest Distance |
131 × 134 mm at 200 mm |
| Single Capture Area at Furthest Distance |
312 × 269 mm at 400 mm (Multi-line Laser, Full-field)
505 × 538 mm at 800 mm (VCSEL Mode)
|
| Angular Field of View (H × V) |
46 × 37° |
| Minimum Scan Volume |
10 × 10 × 10 mm |
| Maximum Scan Volume |
2 × 2 × 2 m |
| Scanning Speed |
Multi-line Laser Scan: 80–105 fps (NVIDIA GPU), 40–60 fps (CPU)
Full-field Structured Light Scan: 15–20 fps
VCSEL Structured Light Scan: 20–30 fps
|
| Point Return Rate, up to |
Multi-line Laser: 2,000,000 Points/s
Full-field Structured Light Scan: 5,000,000 Points/s
|
| RGB Camera Resolution |
1.3 Megapixels |
| Color Scanning |
Yes |
| Tracking Methods |
Feature, Marker, Global Marker, Color |

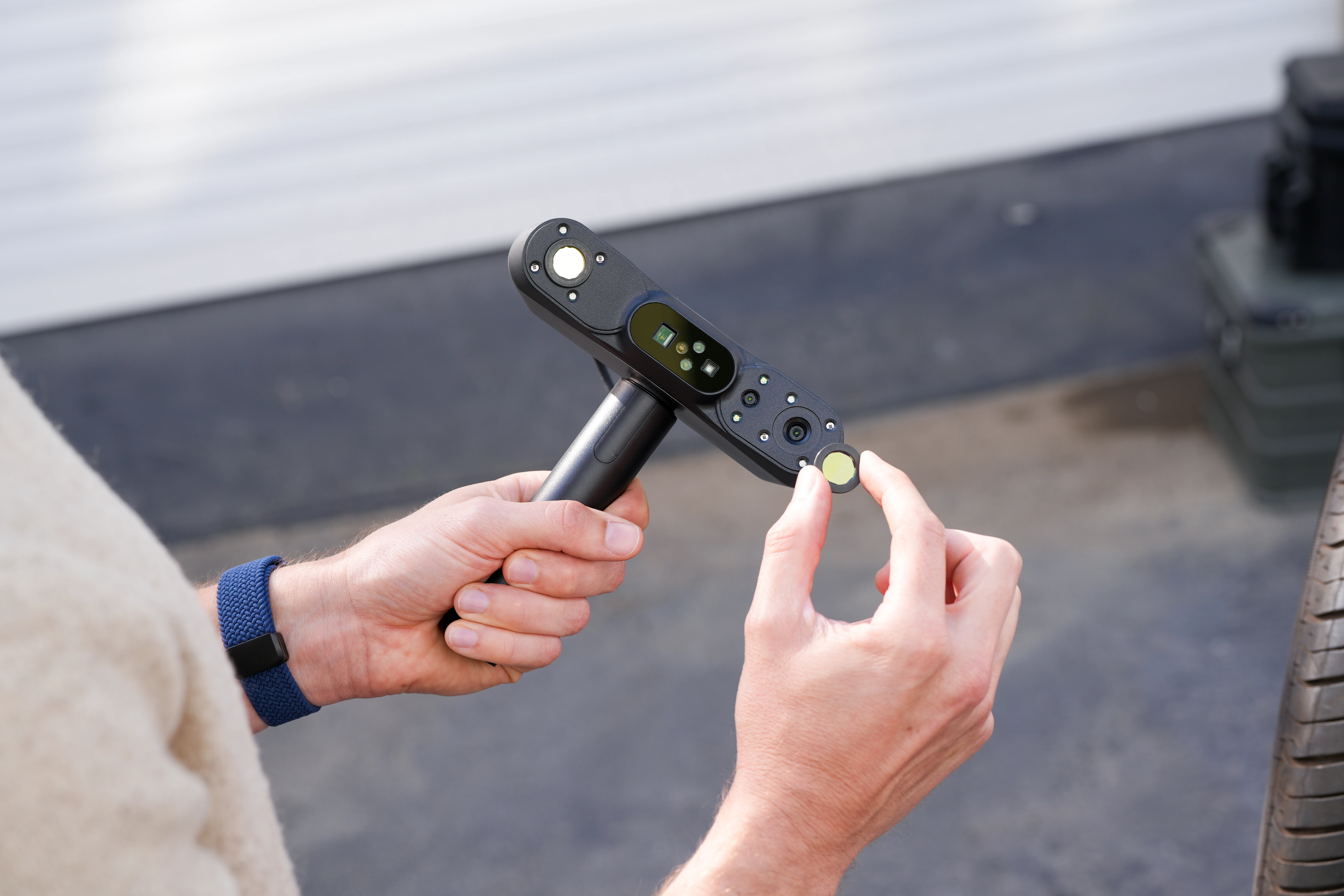

| Outdoor Scanning |
Yes
Lighting Environment Requirements: Multi-line Laser ≤ 50,000 lux, VCSEL ≤ 100,000 lux
When using the multi-line laser mode with an outdoor filter, scanning is possible in lighting conditions of up to 100,000 lux.
|
| 3D Light Source |
30 Blue Cross Laser Lines

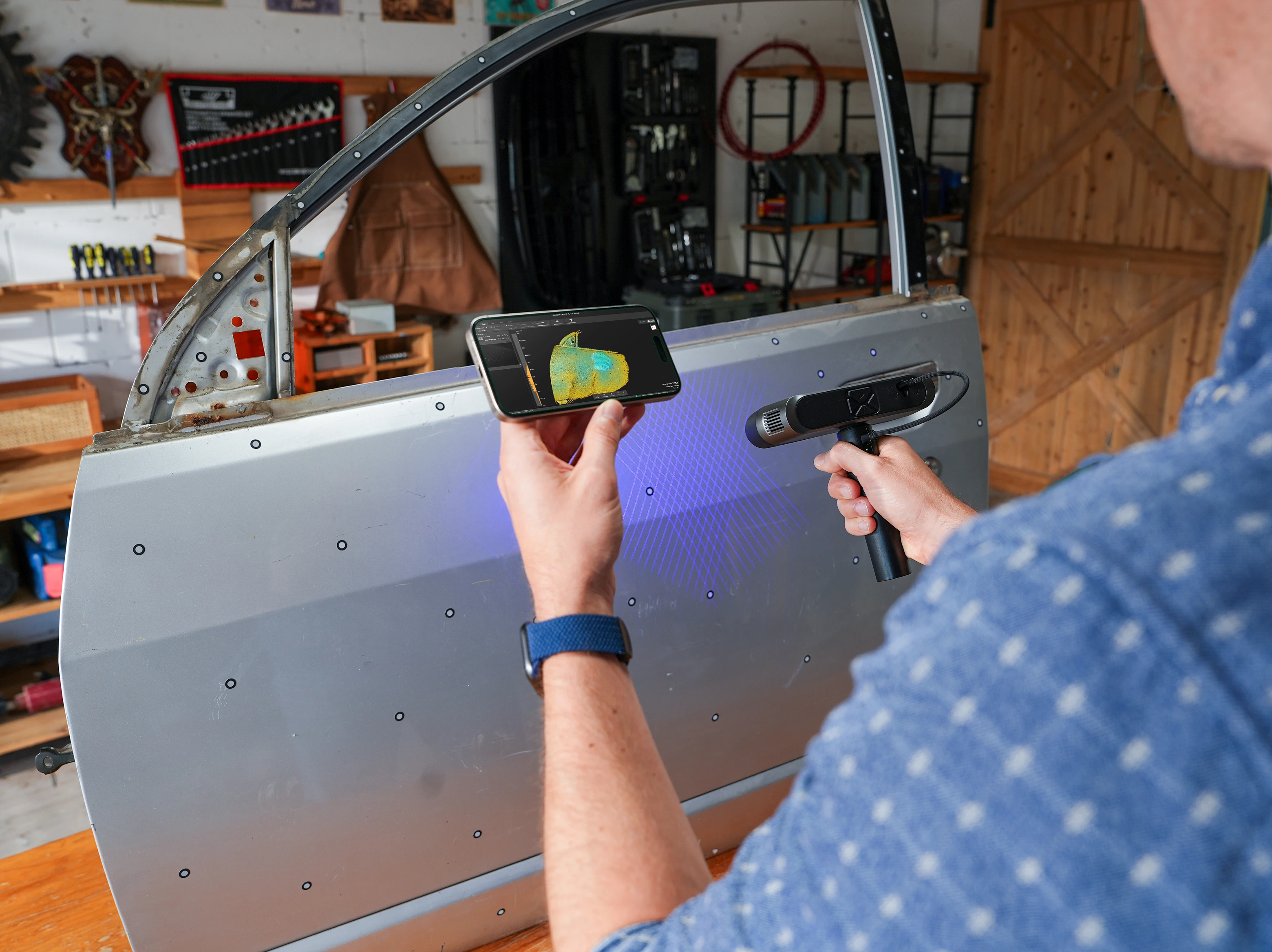

1 Blue Single Laser Line (Deep-Hole Mode)
Near-Infrared Full-field Structured Light
Near-Infrared VCSEL Structured Light
|
| Fill Lights |
8 (4 Infrared LEDs + 4 Blue LEDs) |
| RGB Lights |
2 |
| Built in Chip Computing |
Depth Map Computing |
| Buttons |
4 |
| Minimum PC Requirements |
macOS:
CPU: M1 Pro/Max/Ultra
RAM ≥ 16 GB
Windows:
CPU: Intel i7 13th Gen or AMD Ryzen 7 5800
RAM ≥ 16 GB
GPU: NVIDIA GeForce RTX 3060 (8 GB)
Note:
If you're unsure about the CPU configuration, please ensure that the CPU has cores ≥ 8, threads ≥ 16, and a base frequency ≥ 2.4 GHz.
Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration.
|
| Recommended PC Requirements |
macOS:
CPU: M3 Pro/Max/Ultra or better
RAM ≥ 24 GB
Windows:
CPU: Intel i9 12th Gen or better
RAM ≥ 32 GB
GPU: NVIDIA RTX 4060 (8 GB) or better
|
| Mobile Requirements |
Android:
System Version: 9.0 or better; RAM ≥ 8 GB; Storage ≥ 128 GB
iPhone:
Models after iPhone X; System Version: iOS 14.0 or better; RAM > 4 GB; Storage ≥ 64 GB
iPad:
10th Gen iPad or later
Note: Multi-line scanning mode does not support standalone mobile phone operation. It requires the scanner to connect to a PC via WiFi to work, with the screen being cast to the mobile phone in real-time. Full-field scanning mode and VCSEL scanning mode can be used independently with a mobile phone.
|
| Compatible Operating Systems |
Windows 10/11 (64-bit), Android, iOS, macOS 11.0 or better |
| Output File Formats |
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat |
| Ready to Print 3D Models |
✔ |
| Wi-Fi |
Wi-Fi 6 |
| Bluetooth |
4.1 |
| Connector Type |
Type-C to Type-C USB 3.0 |
| Power Requirements |
DC 5V, 2A |
| Scanner Weight |
286 g |
| Dimensions (L × W × H) |
160 × 30 × 72 mm |
| Special Object Scanning |
Please use scanning spray when scanning transparent or specular surfaces. |
| User Recalibration |
Yes |

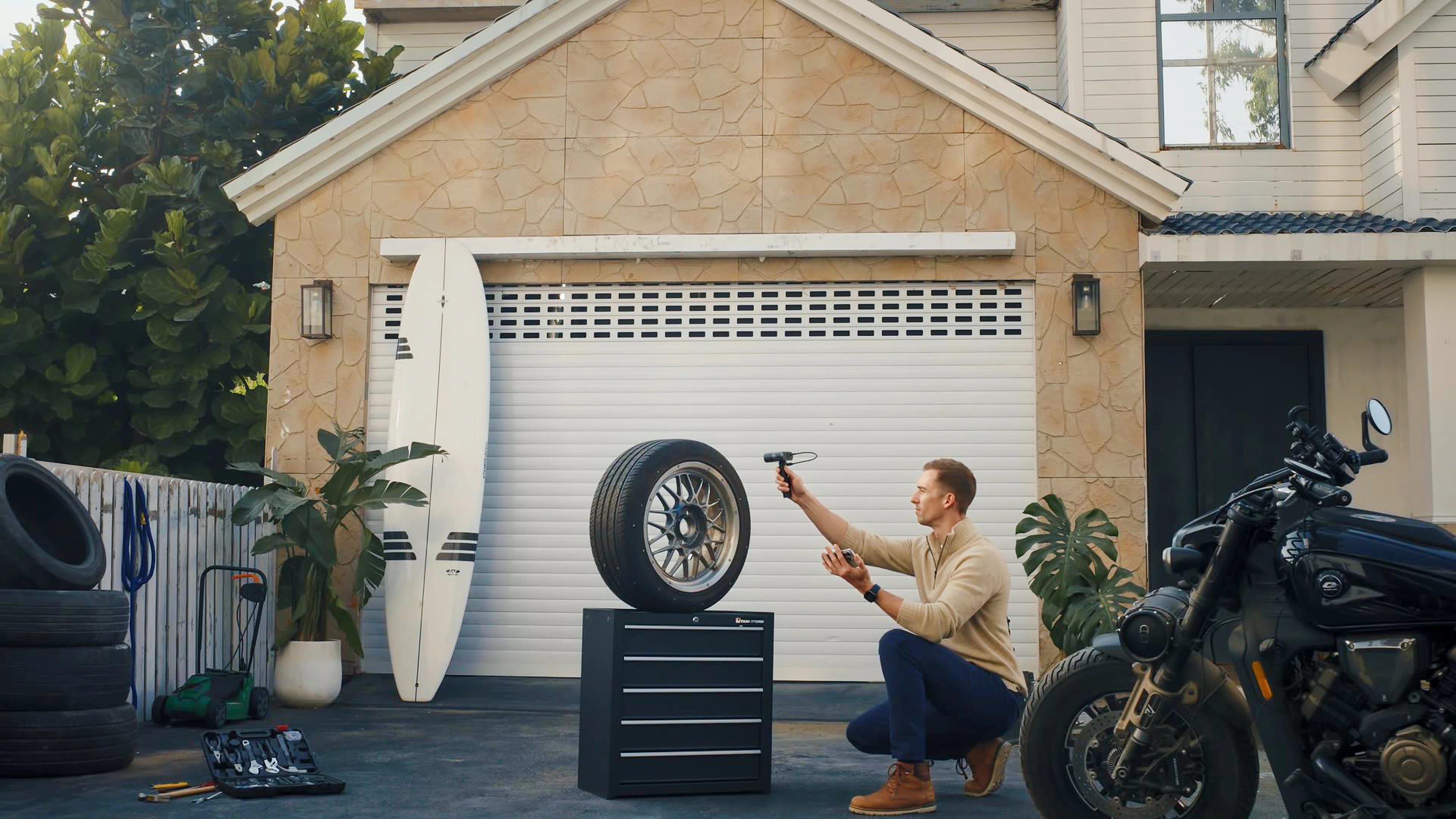

| Power Bank Capacity |
5500 mAh (4 hours of battery life under average power consumption) |
| Supported Accessories |
Marker Block Kit, Mobile Kit (4th Gen), Dual-axis Turntable (Ⅱ) |
| Note |
1. Accuracy is how close a measured value at a single angle is to the actual (true) value. The data was acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Class 1 Laser: Avoid direct eye exposure for extended periods. Refer to Standards for Class 1 Lasers for details.
3. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
4. 3D Gaussian Splatting mode requires an NVIDIA GPU.
5. Scanning speeds may vary depending on PC hardware.

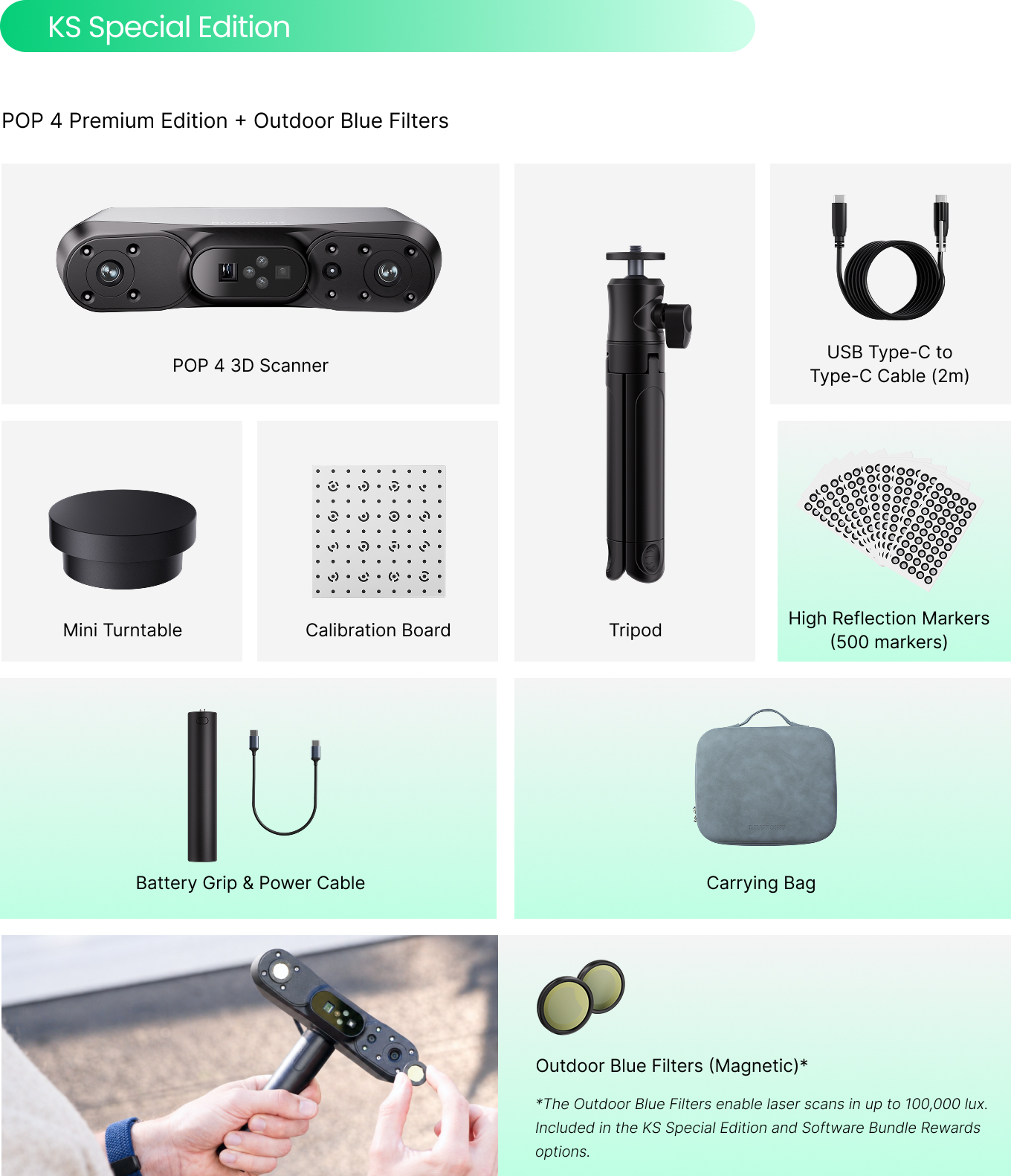

6. Without the Outdoor Blue Filter, detailed blue-laser scans can be performed only in up to 50,000 lux.
|
